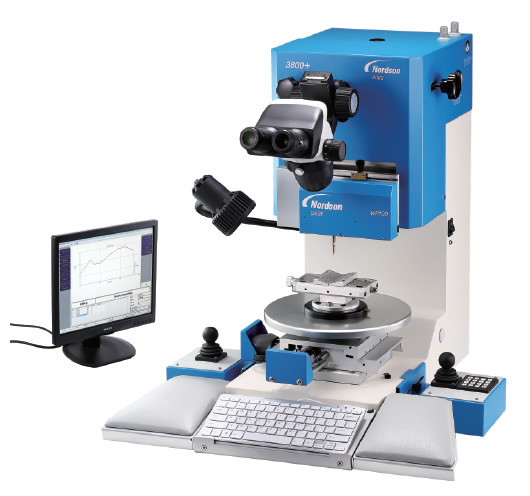

The Nordson DAGE 3800 bondtester is a new platform specifically configured for applications where system configurations are limited or where a dedicated, rather than multi-purpose function, is required. As you can expect from Nordson DAGE, accuracy and repeatability are maintained with no compromise in performance.

The 3800 is a platform specifically configured for the more traditional bondtesting applications.

Features and Benefits

• Fully configured out of the box
• Quick release intelligent load cartridge system for rapid applications changeover
• Ergonomic pull hook system for fast load hook changes – no hand 　tools needed
• Auto hook function for automatic repeatable hook to wire positioning
• Ball shear Z positioning accuracy (step back) +/- 1 micron 　(qualified with laser measurement system)
• Automatic alarm notification for load test results that have drifted 　outside their selected CpK limits
• Automatic load cartridge calibration and linearity checks using 　weights directly traceable to national standards
• Includes remote tower PC, Win7,32BiT with keyboard, mouse and 17 　inch monitor
• Includes Nordson DAGE microscope kit with 10x eye pieces and a 0.67 　objective lens

Applications

• Fine wire pull up to 100 grams
• Heavy pull up to 1Kg
• Ball / bump shear up to 250 grams
• Solder ball shear and small die shear up to 5Kg
• Die shear up to 100Kg
